Detailed introduction：
characteristic
■ two independent mechanical seals ensure long-term and reliable operation of submersible motor.
High quality maintenance free bearing of international famous brand, long service life.
The unique cable sealing design eliminates the hidden danger of cable leakage.
■ the motor shaft is made of stainless steel, and the rotor runs smoothly after dynamic balance detection.
Internal leakage sensor and stator winding over temperature protection device (pj0.37/6, pj0.55/4 no leakage sensor).
The stainless steel stamping impeller of the mixing agitator is designed to be swept back, with high efficiency and self-cleaning function.
■ the blades of the low-speed thruster are made of reinforced polyurethane and are swept back with self-cleaning function; the smooth and streamlined surface of the blades makes the thrust evenly distributed.
■ all fasteners contacting medium of low-speed thruster are made of stainless steel; the reducer adopts one-piece reducer with high safety factor, which is equipped with cycloidal pinwheel reducer as standard, and helical gear reducer is optional.
purpose

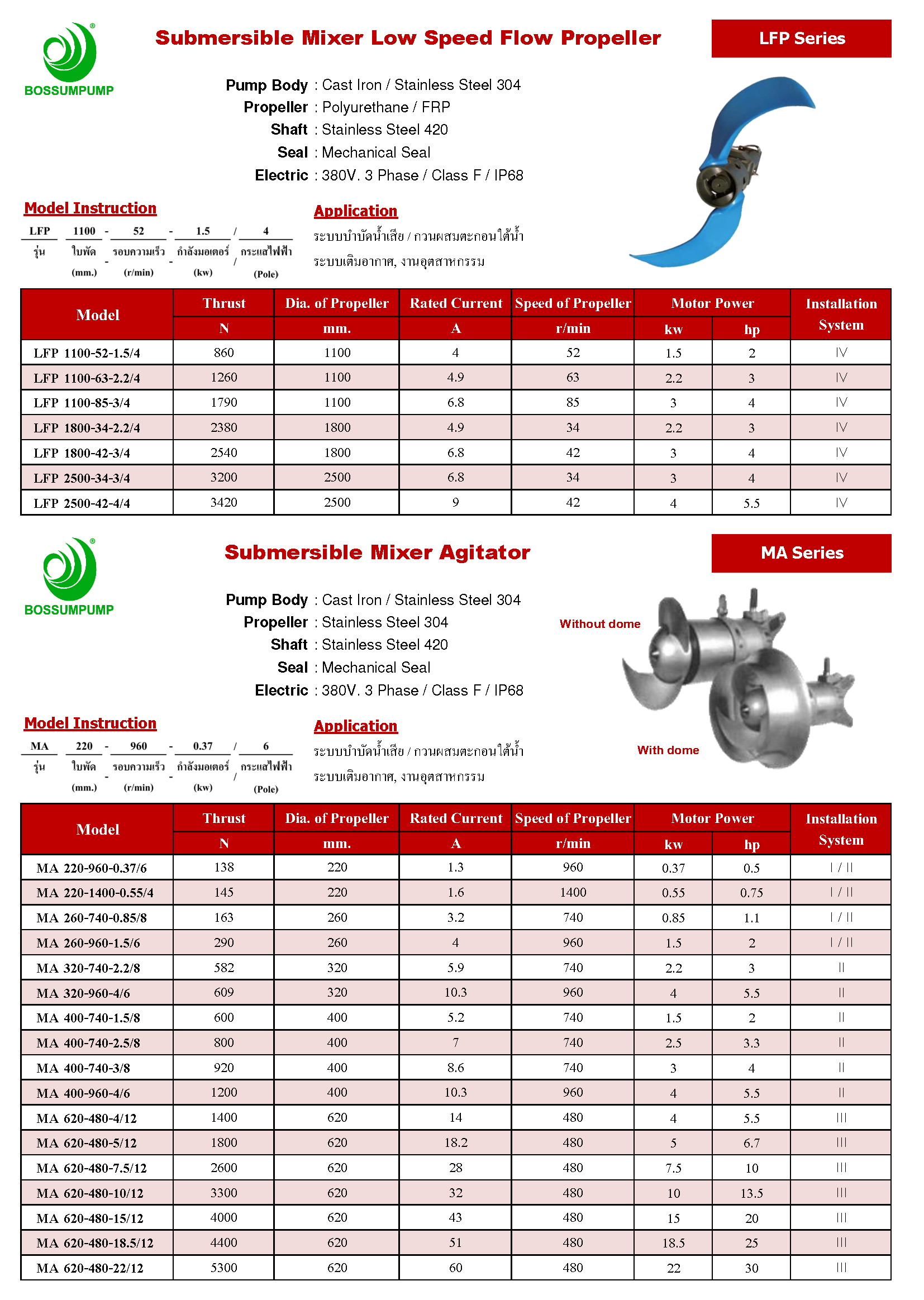

Submersible mixer is divided into mixing mixer and low-speed impeller, which is mainly used for mixing, mixing and circulation in the process of municipal and industrial sewage treatment: activated sludge tank, biological reaction tank, mixing tank, mud storage well, equalization tank, sewage pool, etc.; maintenance equipment for landscape water environment, improving water quality; creating water flow to effectively prevent the deposition of suspended solids.
Applicable conditions
■ medium temperature: ≤ 40 ° C
■ pH value of medium: 5 ~ 9
■ medium density: ≤ 1150Kg / m3
■ diving depth: ≤ 20m
■ Power supply: 380V, 50Hz
■ motor: Class F insulation and IP68, 24 / h continuous operation
■ the submersible mixer must be fully submerged to work
■ two independent mechanical seals ensure long-term and reliable operation of submersible motor.
High quality maintenance free bearing of international famous brand, long service life.
The unique cable sealing design eliminates the hidden danger of cable leakage.
■ the motor shaft is made of stainless steel, and the rotor runs smoothly after dynamic balance detection.
Internal leakage sensor and stator winding over temperature protection device (pj0.37/6, pj0.55/4 no leakage sensor).
The stainless steel stamping impeller of the mixing agitator is designed to be swept back, with high efficiency and self-cleaning function.
■ the blades of the low-speed thruster are made of reinforced polyurethane and are swept back with self-cleaning function; the smooth and streamlined surface of the blades makes the thrust evenly distributed.
■ all fasteners contacting medium of low-speed thruster are made of stainless steel; the reducer adopts one-piece reducer with high safety factor, which is equipped with cycloidal pinwheel reducer as standard, and helical gear reducer is optional.
purpose
Submersible mixer is divided into mixing mixer and low-speed impeller, which is mainly used for mixing, mixing and circulation in the process of municipal and industrial sewage treatment: activated sludge tank, biological reaction tank, mixing tank, mud storage well, equalization tank, sewage pool, etc.; maintenance equipment for landscape water environment, improving water quality; creating water flow to effectively prevent the deposition of suspended solids.
Applicable conditions
■ medium temperature: ≤ 40 ° C
■ pH value of medium: 5 ~ 9
■ medium density: ≤ 1150Kg / m3
■ diving depth: ≤ 20m
■ Power supply: 380V, 50Hz
■ motor: Class F insulation and IP68, 24 / h continuous operation
■ the submersible mixer must be fully submerged to work
